The Problem
Customer reported the ID.4 displayed "Electric Drive System: Workshop!" and refused to drive. Car had been driven normally the previous day with no warnings. Stored faults: U111300 (Gateway module no communication), U010087 (BMS no communication), U012500 (Inverter no communication) and several other U-codes across multiple modules. Shop suspected HV inverter or BMS failure. HV battery SOC showed 74% - pack appeared charged.
Diagnostic Procedure
-
1
1. Before any module-level diagnosis, measure 12V battery voltage with everything off (true open circuit). ID.4 uses a conventional 12V AGM lead-acid battery. A weakened AGM can read 12.4V at rest but collapse to below 10V when the HV system attempts to initialize - which requires significant 12V current to close contactors.
-
2
2. Perform a proper AGM battery load test at the rated CCA. A battery reading 12.4V at rest but failing a load test is the classic pattern on MEB-platform VWs with this symptom.
-
3
3. Connect VW-capable scan tool (ODIS, VCDS, or Autel with VW full coverage). Note that if 12V voltage is marginal, module communication will be unstable during scanning. Connect a battery maintainer to stabilize 12V during diagnosis.
-
4
4. Pull faults from all modules. Multiple U-codes (communication faults) across many unrelated modules is a strong indicator of 12V supply instability, not a genuine multi-module failure.
-
5
5. Attempt to clear all codes with battery maintainer connected. Cycle ignition and attempt to drive. If faults immediately return on next initialization attempt, 12V supply is insufficient.
-
6
6. Check ID.4 production date and battery age. MEB-platform 12V AGM batteries have shown early failure patterns in the 2020-2022 production years, sometimes within 2-3 years of service.
-
7
7. Replace 12V AGM battery with OEM-spec unit (typically 60Ah AGM, check label on original). Clear all stored codes after replacement.
Resolution & Root Cause

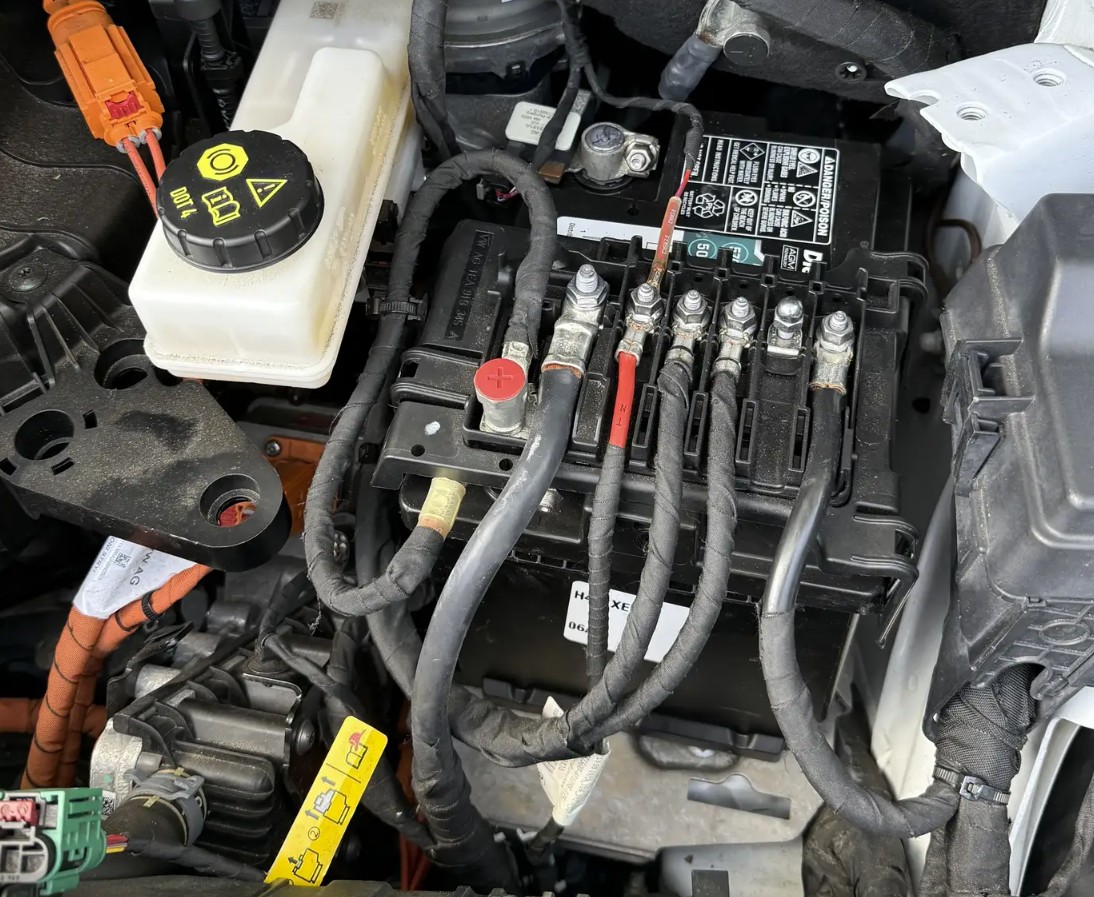

12V battery rested at 12.38V but failed load test at 380 CCA - dropped to 9.1V under load. This voltage collapse during HV system initialization prevented the main contactors from closing and caused a cascade of module communication faults as modules lost stable supply voltage. Replaced 12V AGM battery with OEM VW unit. Cleared all stored codes. HV system initialized normally on first attempt - all U-codes absent. "Electric Drive System: Workshop!" warning cleared and did not return. Customer confirmed normal operation over one week follow-up. No HV components inspected or replaced.
💡 Key Lesson
Multiple U-code communication faults on VW ID.4 (and MEB platform broadly: ID.3, ID.5, Audi Q4 e-tron) are the signature pattern of a failing 12V AGM battery. The battery reads acceptable at rest but cannot deliver the current required during HV system initialization. A load test is mandatory - open-circuit voltage alone is misleading. This is one of the most common misdiagnosed faults on MEB-platform EVs in independent shops.
